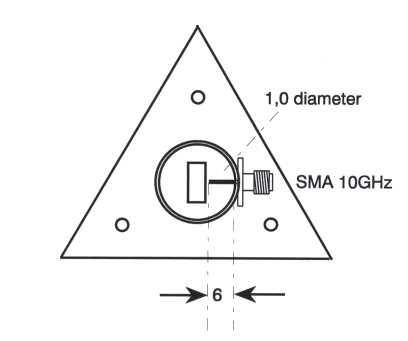

DUAL-BAND FEED 10/24GHz (DJ7FJ)

Version DB6NT 05.92

10GHz = Return Loss :>18dB; Beam Width: 120°/10dB

24GHz = Return Loss :~ 18dB; Beam Width: 90° /10dB

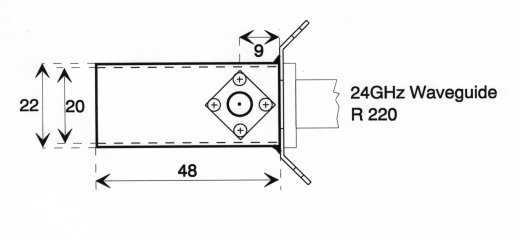

(all dimensions are in mm)

source of supply:micro-mechanik
