Amateur-Radio-Station in JO50VI

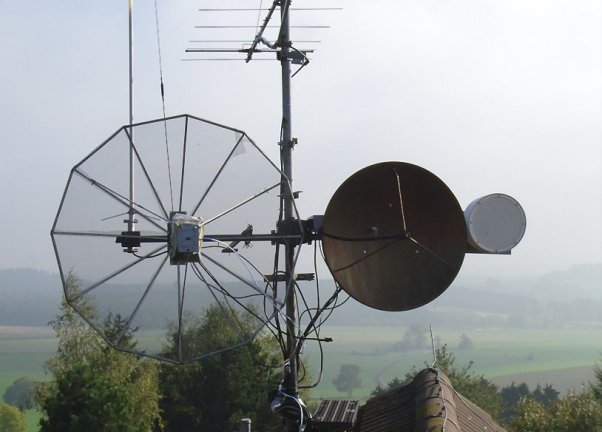

9cm/6cm and 3cm

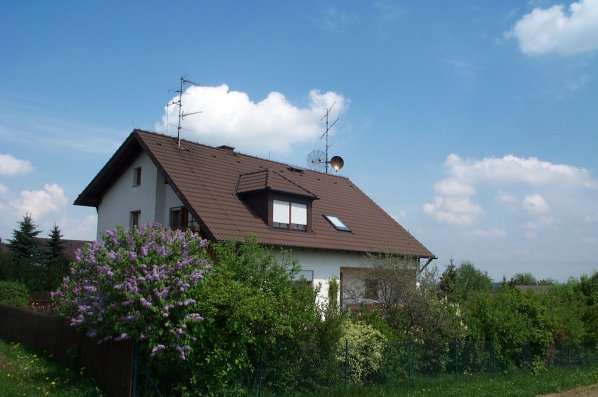

Our house with antennas (640m ASL)

New IF switch based on an "ARDUINO UNO"





 band

 antenna

rig

GPS controlled LO

 144 MHz

6 Ele. Yagi

 K3+TR144H+40+PA 600W


 432 MHz

2x 10Ele. Yagi

K3 + TR432H + PA 750W


 1296 MHz

2x 44Ele. Yagi

FT991 +MKU13G3+PA 200W

X

 2320 MHz

2x 67Ele. Yagi

 FT991 +MKU23G4+PA 75W

 X

 3400 MHz

1m dish

FT991 +MKU34G3+PA 40W

 X

 5760 MHz

1m dish

 FT991 +MKU57G3+PA 35W

 X

 10368 MHz

90cm dish

  FT991 +MKU10G3+PA 25W

 X

 24048 MHz

no ant

  temp. QRT

 X

 47088 MHz

no ant

  temp. QRT

 X
