Some parts for sale

prices + shipping cost somewhere in the EU (15,-euro for each parcel).
Please write me your address and a valid phone number for the parcel service
if you want something from this parts and the offer #.

email: dl6nci(at)darc.de

Please check if your desired article is still available (status).

Last update: 29.04.2021


download for DB6NT manuals - click here


Example for ext. input signals

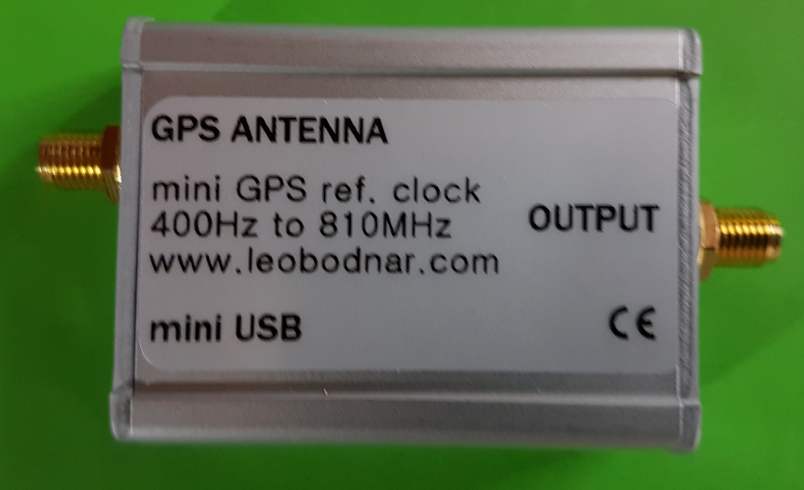

Mini GPS Leo Bodnar

or PLL units from DF9NP http://www.df9np.de

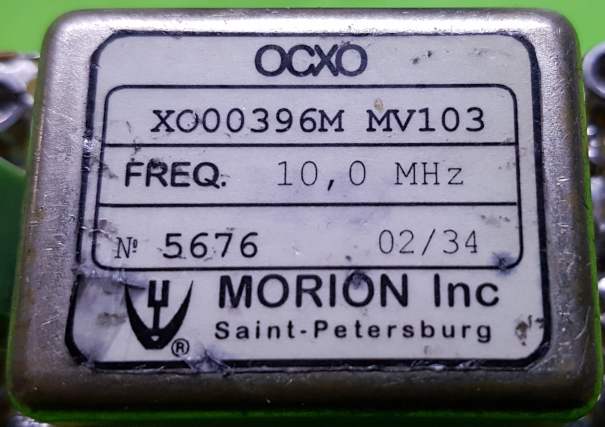

OCXO MORION MV103A (Internet shop EBA...)


offer # 21/7
article 434/10368MHz transverter MKU 10G2 prof. + DF9NP PLL
  434-436MHz IF - suitable for YAESU FT817/818 TRX
Power out 200mW
NF 1.3dB
gain 21dB
connectors SMA female
box milled aluminium
item condition never used
price 235,00€
status sold
remarks external 10,000MHz input needed, PTT: +12V@IF cable


offer # 21/11
article 10368MHz power amplifier (former 12GHz ELISRA PA )

Power in 10mW (can be modified to 100mW input, if you use 200mW transverter)
Power out 22W
voltage -7V and +10V (Idq 10A I tx 14A)
connectors SMA female
box milled aluminium
item condition used
price 215,00€
status sold
remarks big heatsink needed


offer # 21/12
article 12V power supply and protection unit for the10368MHz power amplifier

Power in
voltage in +12V (not 13.8V)
voltage out -7V and +10V, 20A
connectors
box PCB mounted on copper plate
item condition never used
price 45,00€
status sold
remarks heatsink needed






offer # 805/1
article QO-100 equipment - upconverter

Power out 25W (PA STEALTH SM2427 - 12V)
Power in 144MHz 0.5W (upconverter DX patrol with 10MHz input)
connector N female IF and 10MHz input
connector N female for TX antenna 2400MHz
box Aluminium, not waterproof
item condition never used, only tested
price
status avaliable,
remarks external 10MHz input needed, PTT: +12V@IF cable



offer # 805/2
article QO-100 downconverter 10489/433MHz (part of db6nt converter + DF9NP PLL)



connector BNC (433MHz IF and 10MHz input) and SMA female for antenna 10489MHz

box PVC waterproof
item condition never used, only tested
voltage  12V
status avaliable
remarks external 10MHz input needed

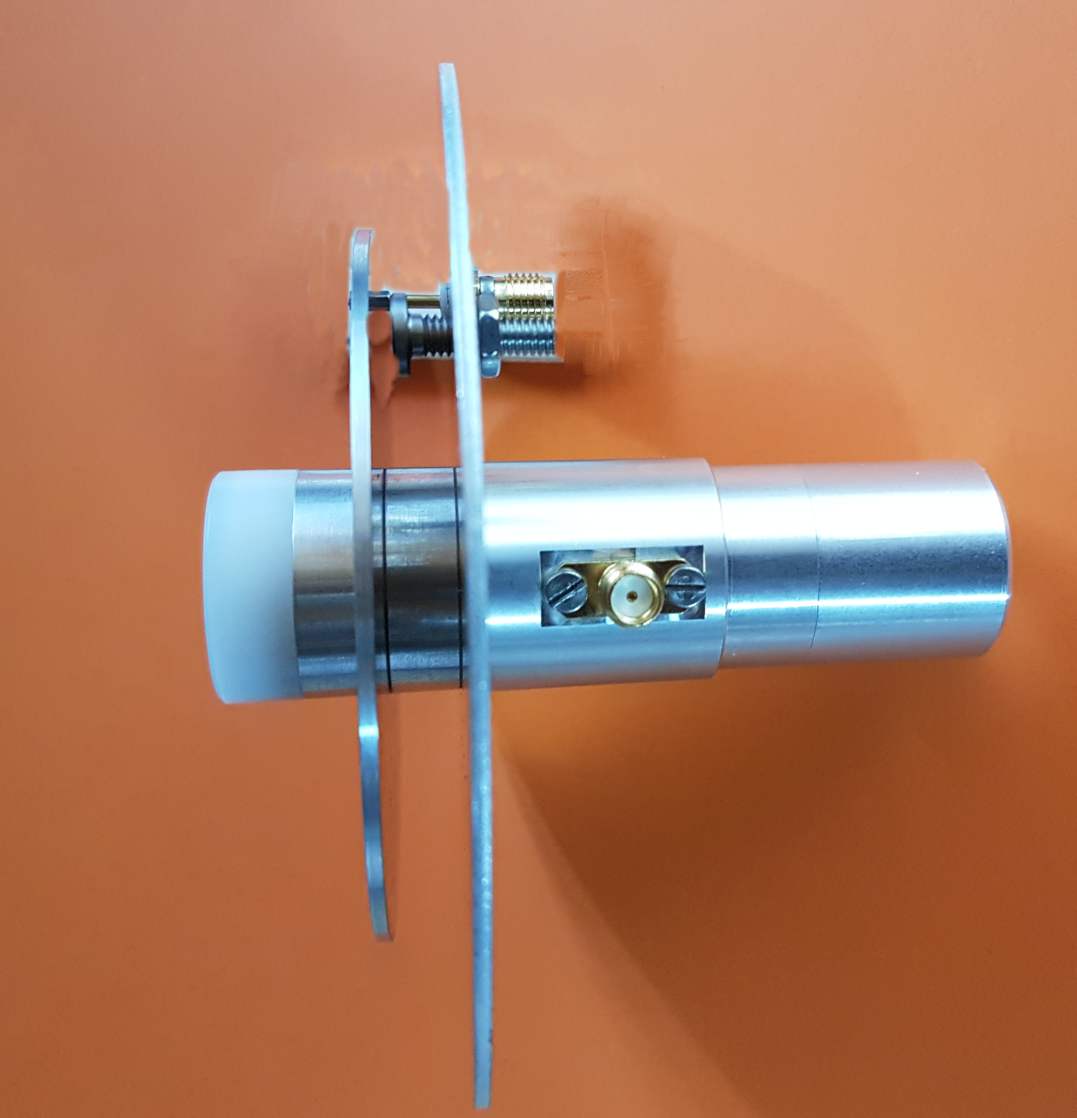

BAMA tech dualband feed included, only dish needed 75-100cm and external 10MHz reference

price: 650,00€ for upconverter, downconverter and feed




offer # 21/13
article ADF5355 PLL + DF9NP PLL for reference frequency input
  -13GHz
Power out 5dBm


connectors SMA female

item condition never used
price 95,00€
status avaliable
remarks external 10,000MHz input needed


hornfeed 3400MHz - offer #21/15

milled aluminium - connector SMA female - price 55,00€

datasheet @ eisch-electronic homepage






offer # 810

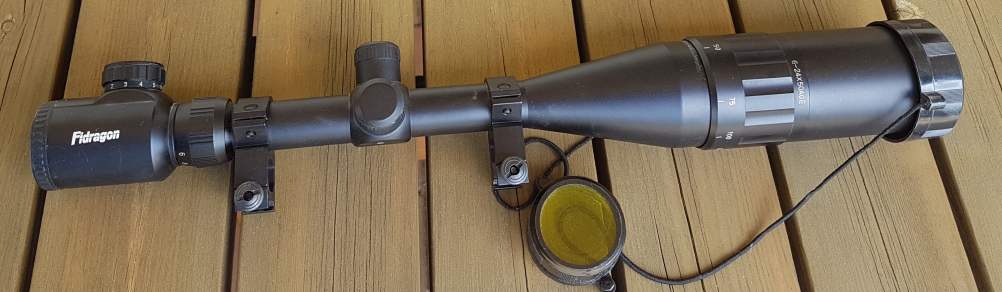

rifle scope ->Laser/mm wave applications 35,00 Euro


offer # 888
article meanwell PSU : RSP-500-24

Power out 500W
voltage In 100 -240V AC, max. 6A
connector screws
voltage out 20 - 26.7V (adjustable) , 21A
box
item condition never used, only tested
price 70,-euro
status avaliable
remarks temperature controlled fan


YAESU FTM-3100E FM mobil

(5/30/65W out)

more info in the internet

55,00€
