Portabel equipment for 1.2GHz up to 47GHz

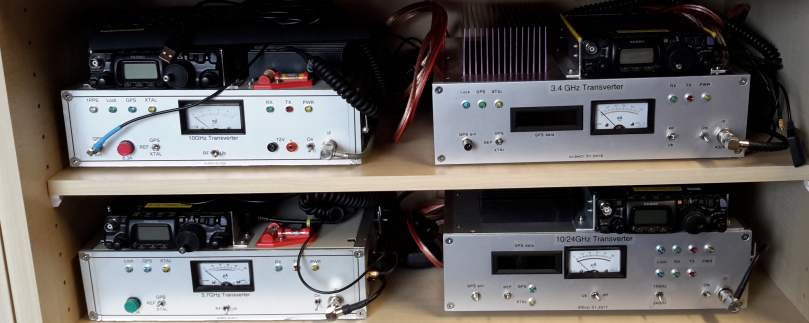

transverter collection.....

Controlbox for 13/23cm

includes 10MHz GPSDO, ext. CatDisplay ZL1CVD, CW TINY

note: Older versions YAESU FT817 have different values of the resistor to the ACC connector for the +12V.
10R is ok, older versions have 75R inside, so the ext. Display did not work.
Replace the resistor R1235 with an10R size 0504 (main unit backside close to the ACC connector)

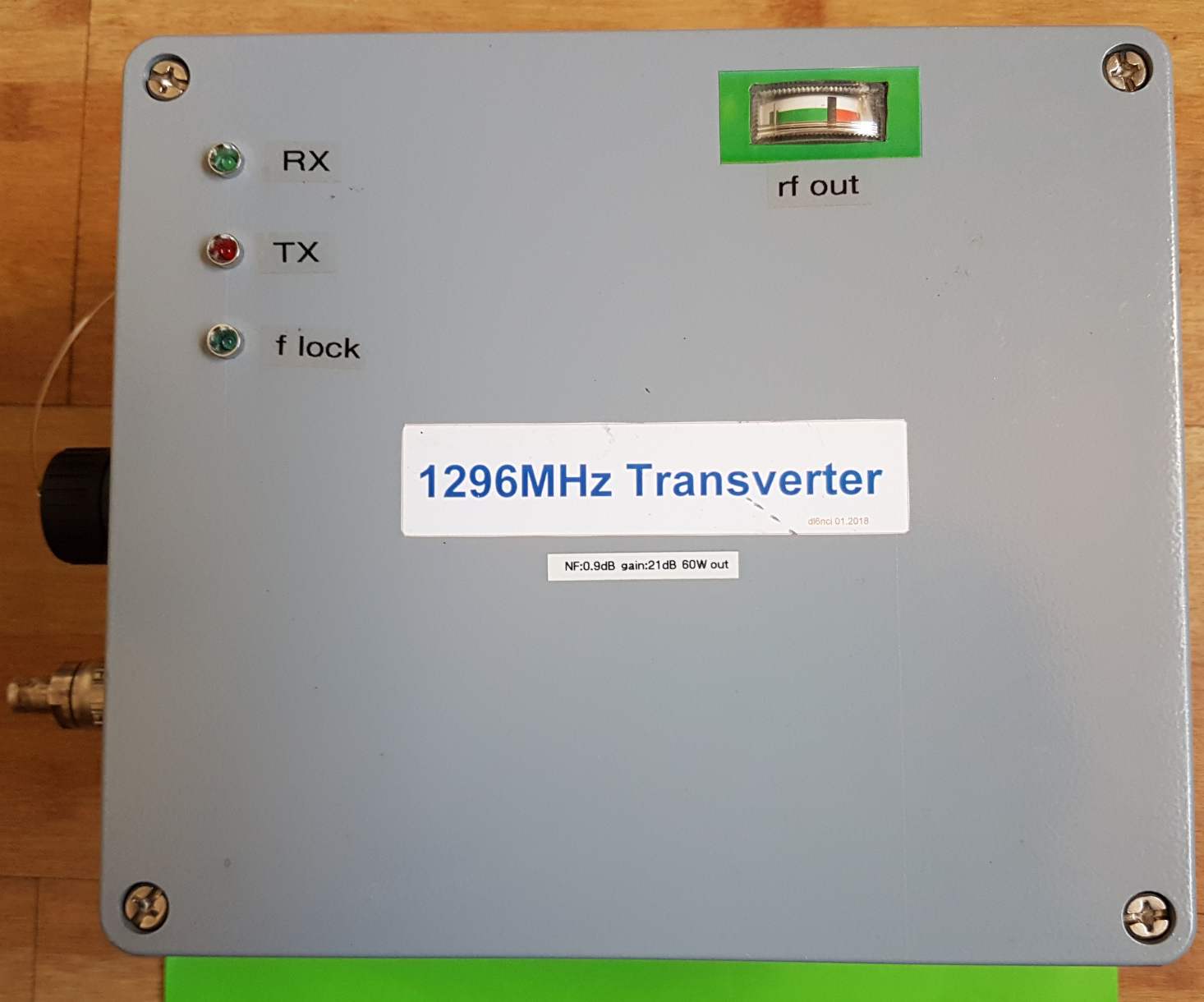

1296MHz



  1296MHz: TRV MKU 13G2:
IF: 146-148MHz
P out: 60W,
NF 1.0dB,
ant: 28 or 44Ele. Yagi SHF design,
YAESU FT817 - 2m TRX, GPS controlled LO (Mini GPS Leo Badnor)


2320MHz

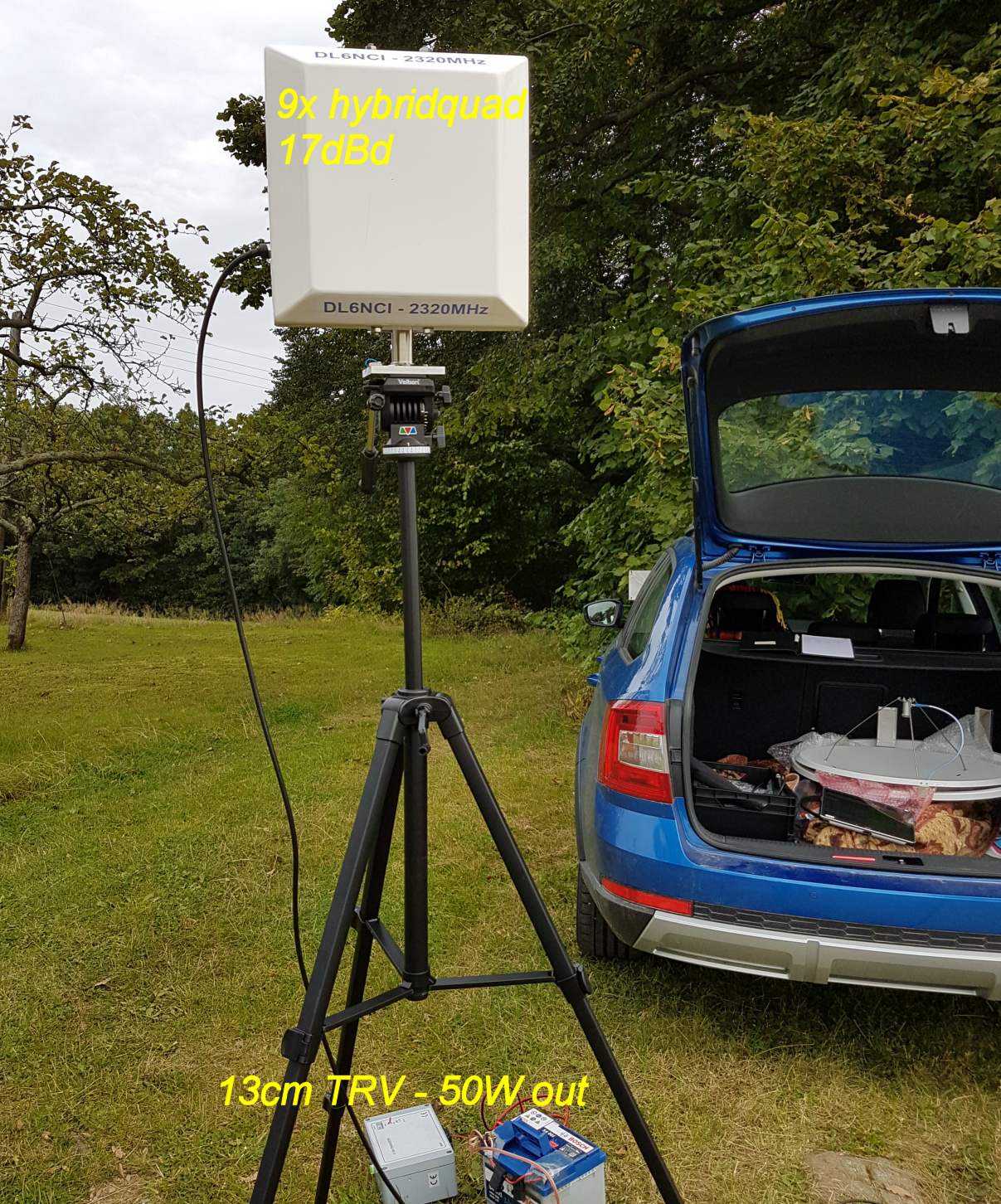

  2320MHz or 2400MHz: TRV MKU 23G4:
IF: 144-148MHz
P out: 50W,
NF 1.0dB,
ant: 9x hybridquad,
YAESU FT817 - 2m TRX, GPS controlled LO

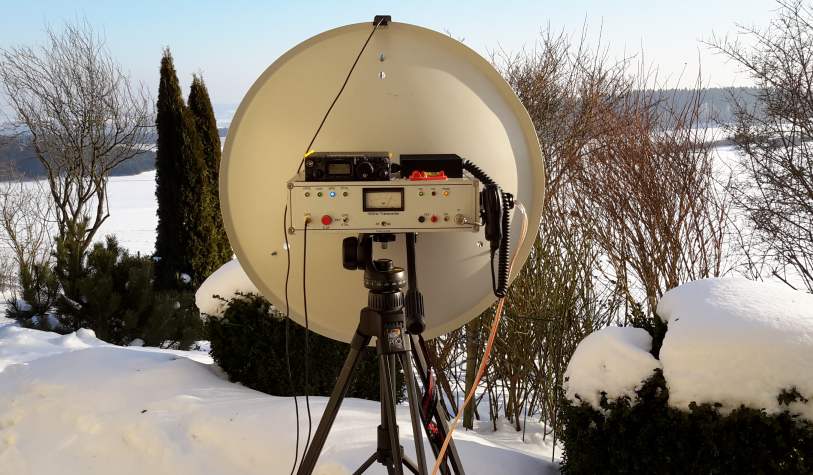

3400MHz

  3400MHz: TRV MKU 34G3:
IF: 432-434MHz
P out: 25W, (WIMAX PA)
NF 1.0dB,
ant: 70cm dish,
YAESU FT817 - 70cm TRX, GPS controlled LO and OLED display for GPS data

5760MHz

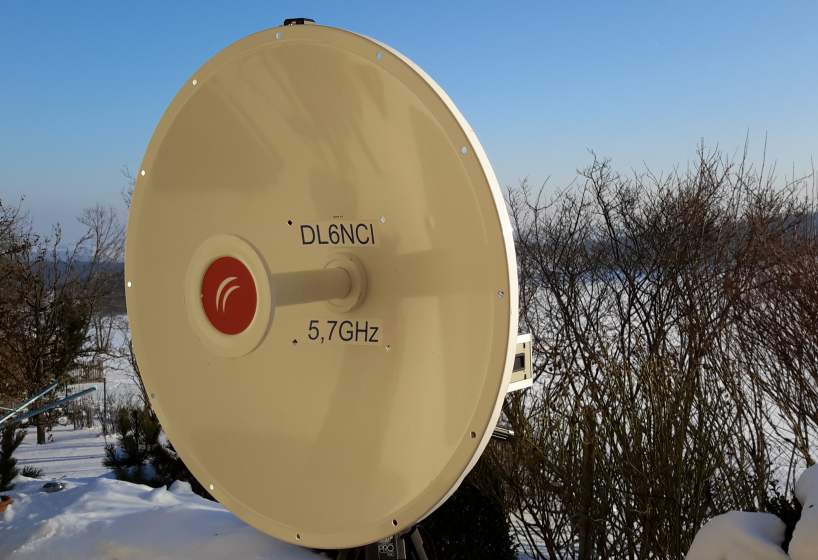

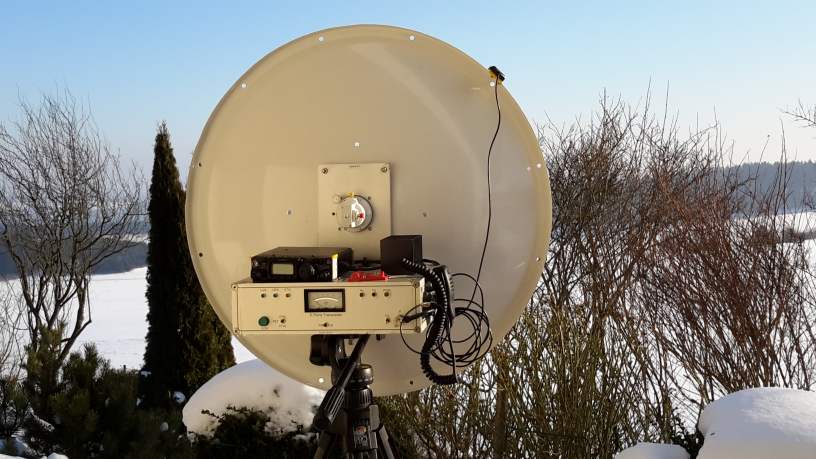

  5760MHz: TRV MKU 57G3 Prof.:
IF: 144-146MHz
P out: 16W
NF: 1.5dB,
ant: 70cm dish,
YAESU FT817 - 2m TRX, GPS controlled LO and OLED display for GPS data

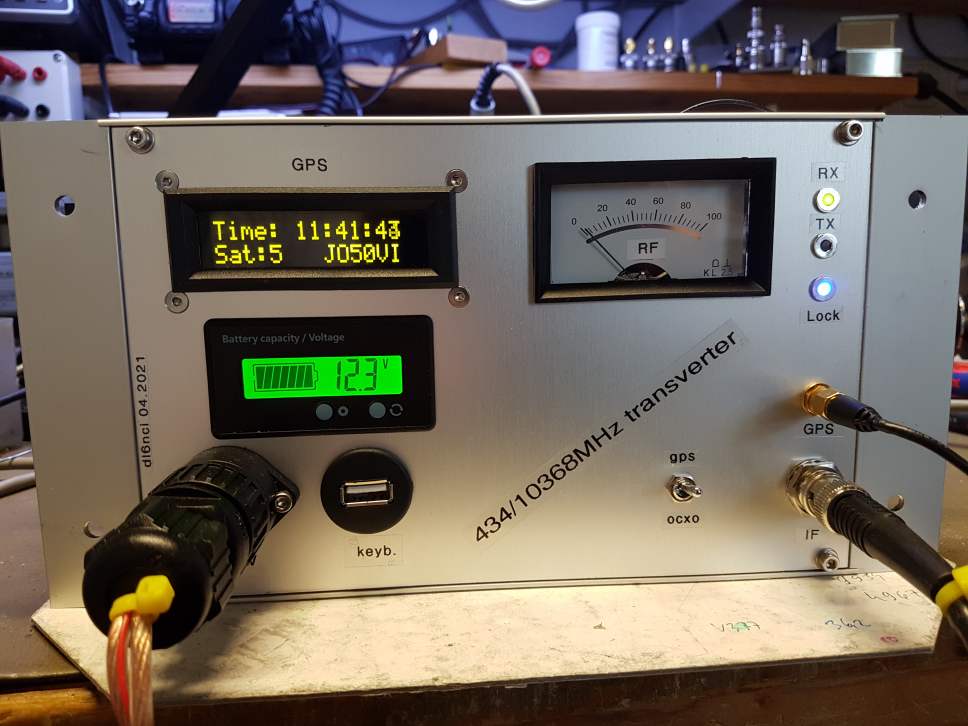

10368MHz

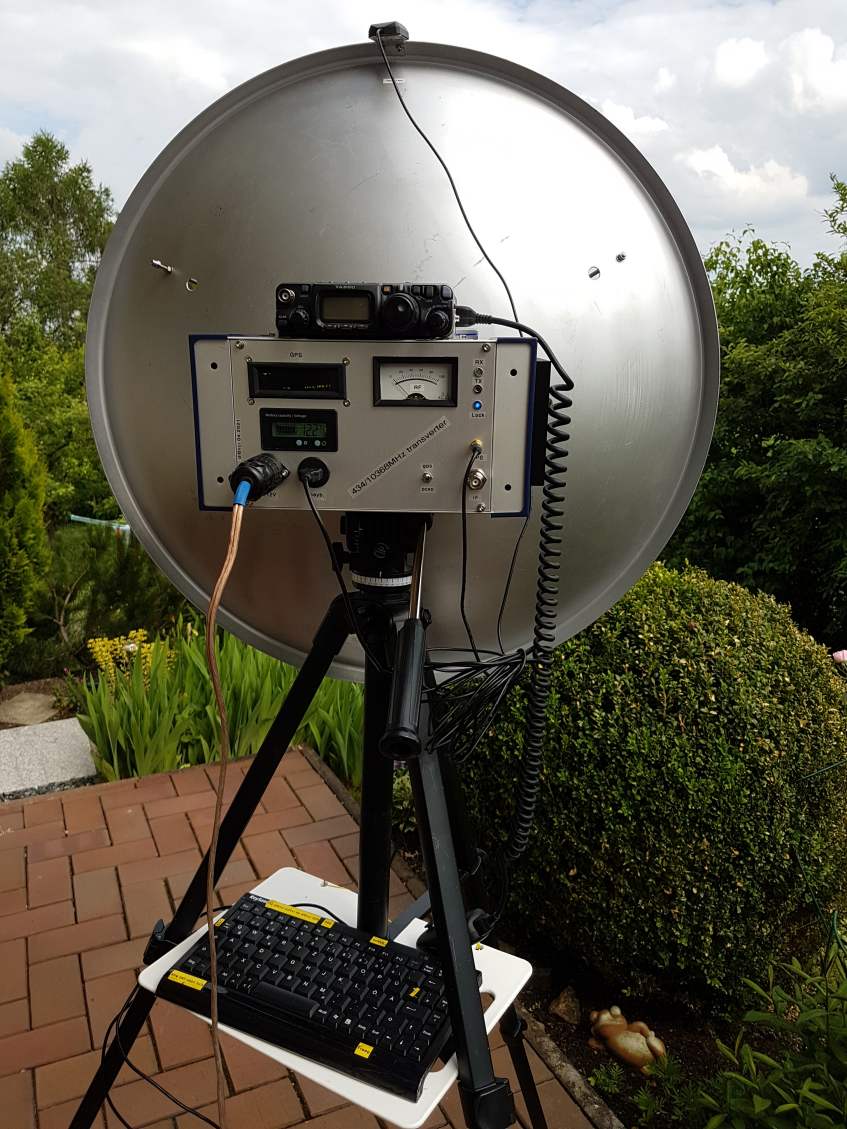

  10368MHz: TRV MKU 10G4:
IF: 434-436MHz
P out: 15W,
NF: 1.5dB,

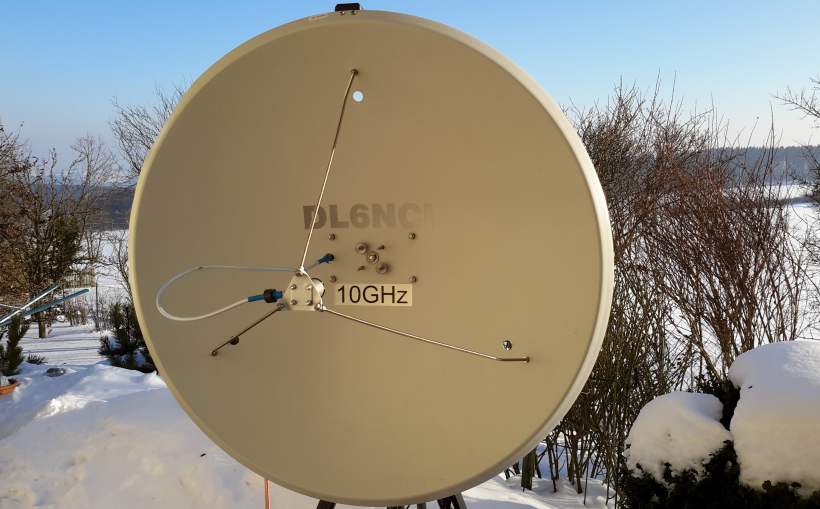

ant: 60cm dish,
YAESU FT817 - 70cm TRX, GPS controlled LO and OLED display for GPS data



10368 + 24048MHz

  10368MHz: TRV MKU 10G3:
24048MHz :TRV MKU 24G2
IF: 144-146MHz
P out: 10W (10GHz), 4W (24GHz)
NF: 1.5dB (10GHz), 4.0dB (24GHz)
ant: 48cm dish,
YAESU FT817 - 2m TRX, GPS controlled LO and OLED display for GPS data

47088MHz



  47088MHz
IF: 144-146MHz
P out: 1.0W,
NF 7.0dB,
ant: 25cm dish,
YAESU FT817 - 2m TRX, GPS controlled LO

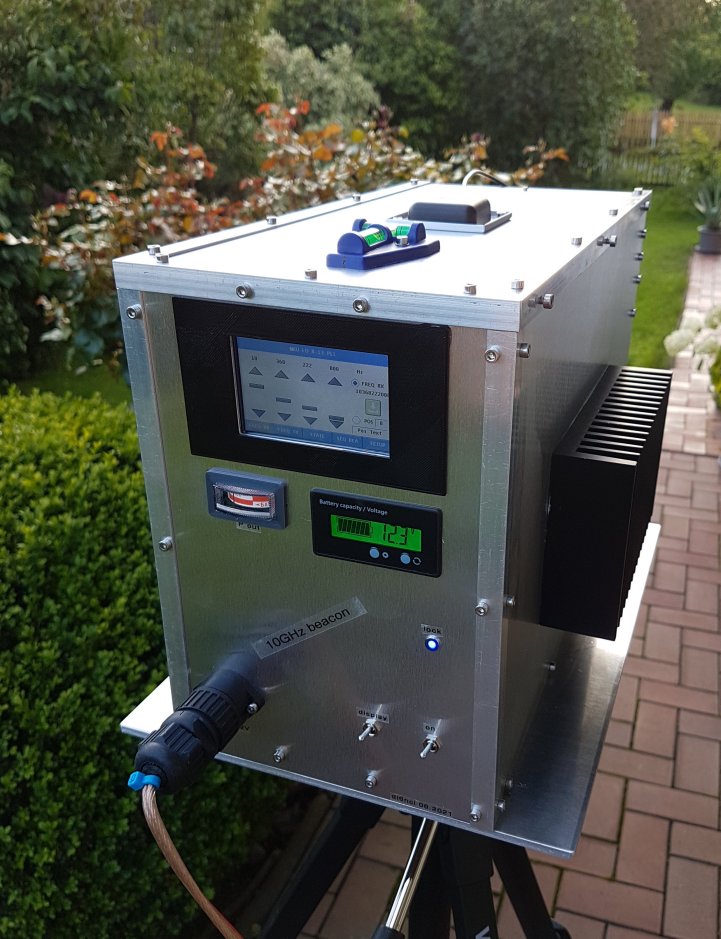

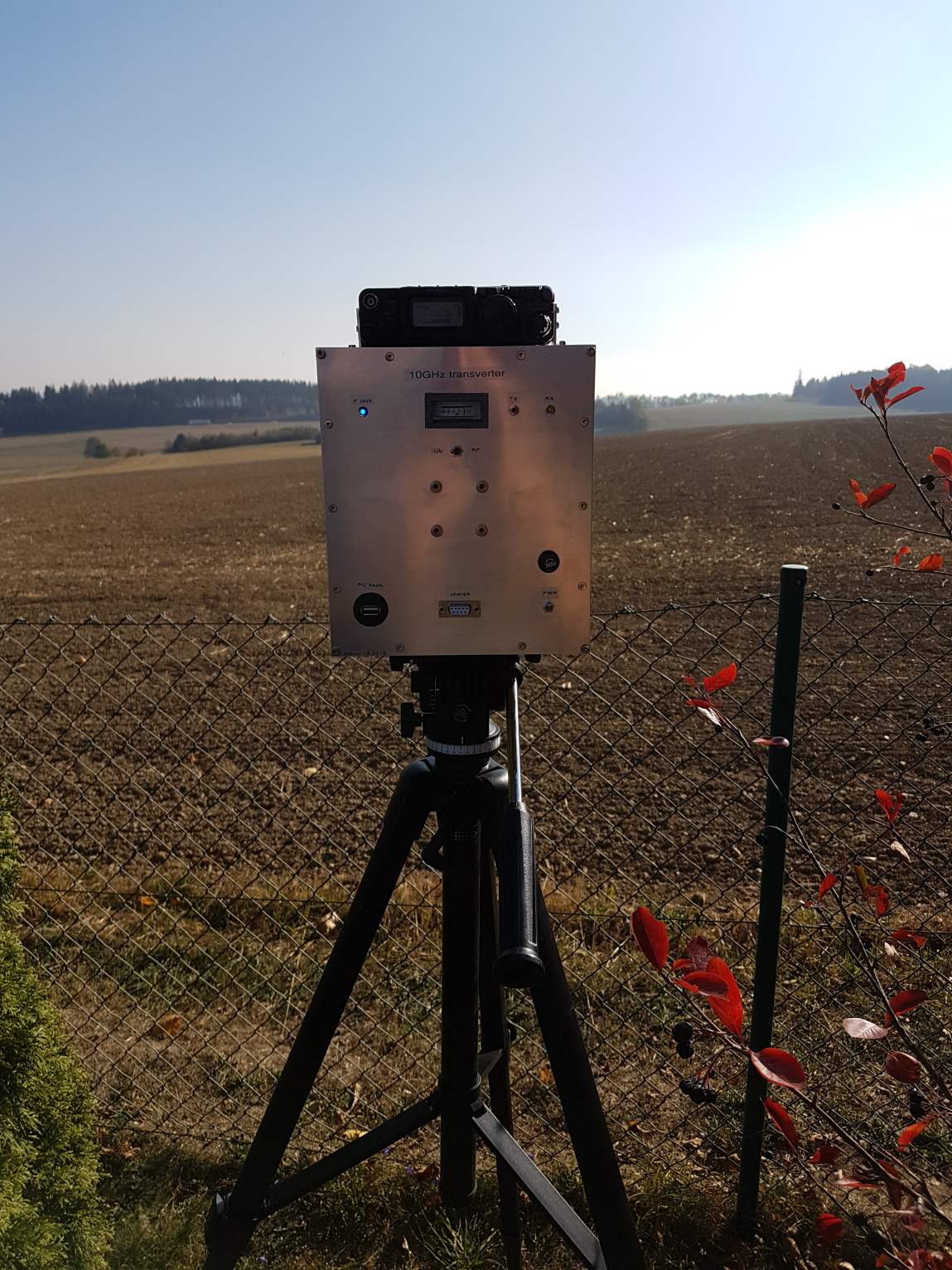

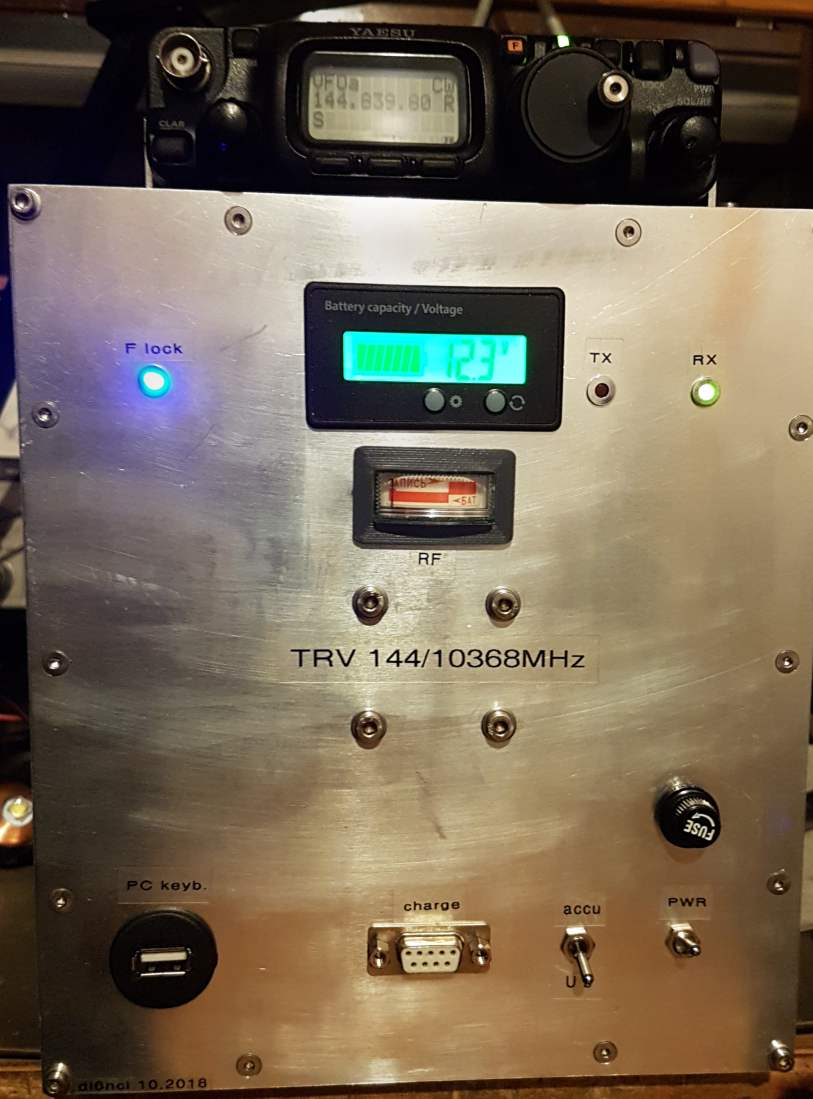

10GHz for backpackers



10368MHz
IF: 144-146MHz
P out: 2.5W,
NF 1.40dB,
ant: 23dB hornantenna,
YAESU FT817 - 2m TRX, 10MHz OCXO (LO)

All parts inside the box: antenna, accu.....



description as *.PDF (german version)

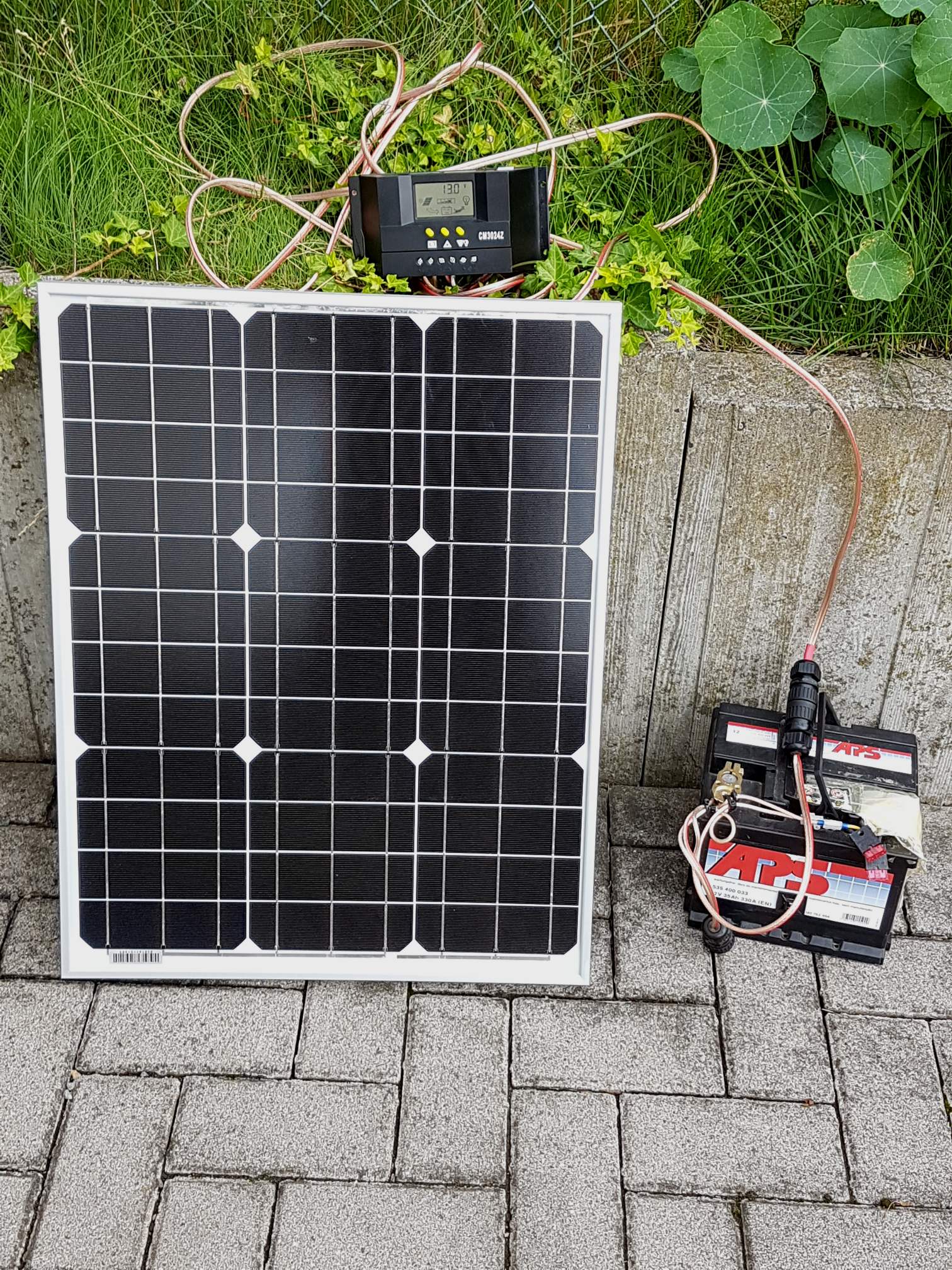

solar panel for the batteries

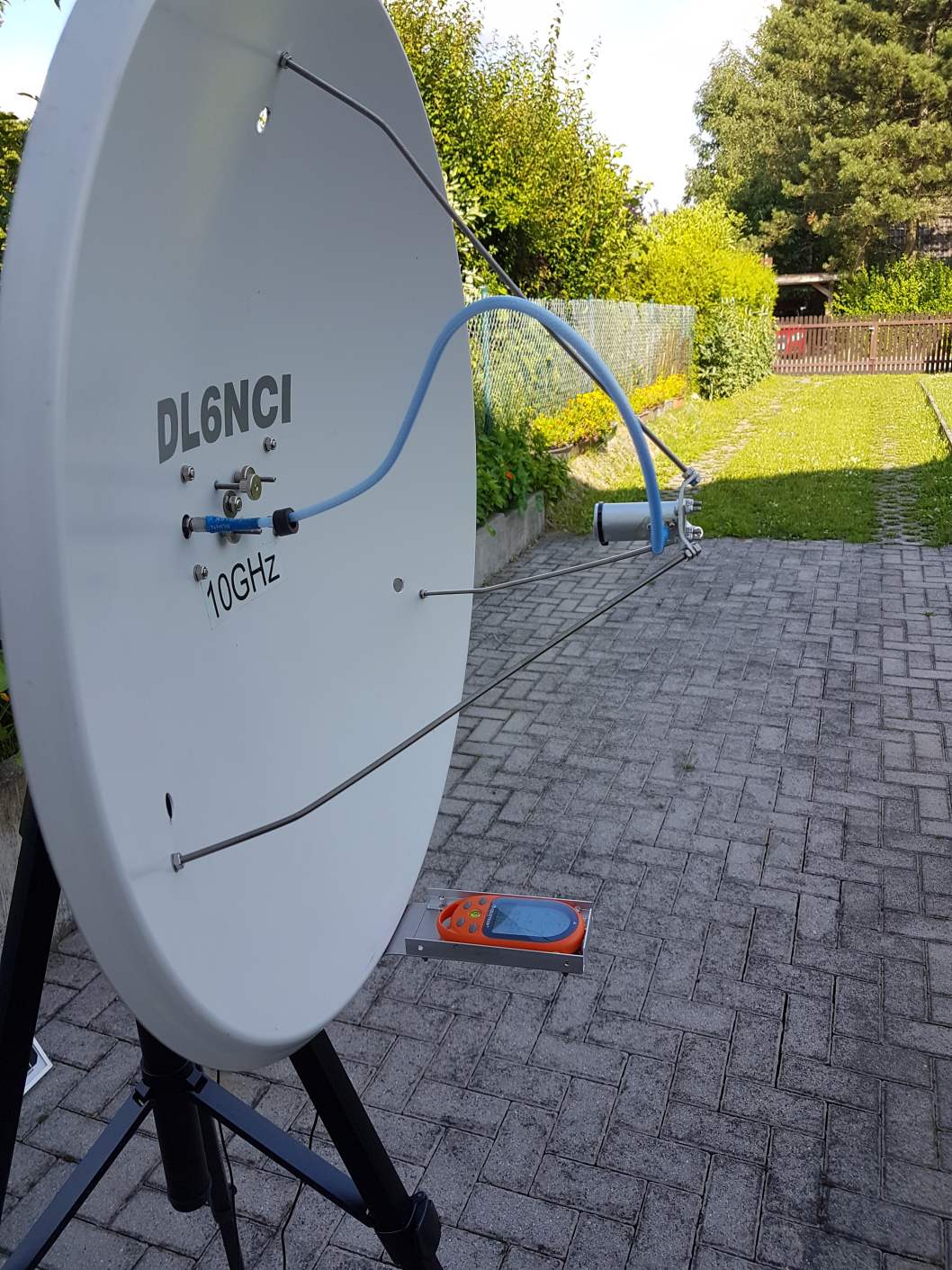

first tests with an digital compass
